4.0W/MK 20 Shore 00 3.0mmT Ultra Soft Thermal Gap Pad For Telecom Hardware

Dongguan Ziitek Electronical Material and Technology Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

4.0W/MK 20 Shore 00 3.0mmT Ultra Soft Thermal Gap Pad For Telecom Hardware

  • 1
  • 2
  • 3

Brand Name : Ziitek

Model Number : TIF5120-40-11US thermal pad

Certification : UL

Place of Origin : China

MOQ : 1000 pcs

Price : 0.1-10 USD/PCS

Payment Terms : T/T

Supply Ability : 100000pcs/month

Delivery Time : 3-8 work days

Packaging Details : 25*24*13cm canton

hardness : 20shore00

KEYWORD : grey silicone rubber pads

color : grey

part number : TIF5120-40-11US

material : silicone

Thickness : 3.0mmT

Contact Now

4.0W/MK 20 Shore 00 Telecommunication hardware applied 3.0mmT ultra soft thermal gap pad

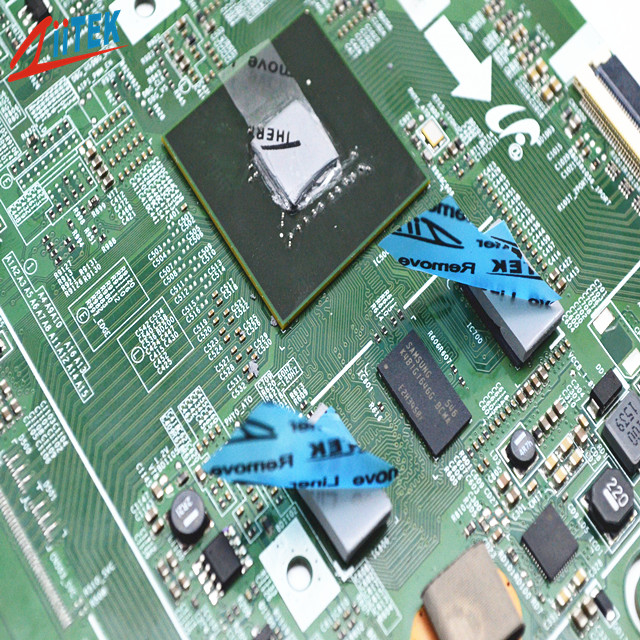

TIF5120-40-11US Series thermally conductive interface materials are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base.Their flexibility and elasticity make them suited to coat very uneven surfaces. Heat can transmit to the metal housing or dissipation plate from the heating elements or even the entire PCB, which effecitly enhances the efficiency and life-time of the heatgenerating electronic components.

TIF500-40-11US Datasheet-REV02.pdf

Company Profile

Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.

Features
<Thickness:3.0mmT
<Good thermal conductive:4.0W/MK

<Moldability for complex parts

<Soft and compressible for low stress applications

<Naturally tacky needing no further adhesive coating

<Available in varies thicknesses

<Broad range of hardnesses available

<Moldability for complex parts

<Outstanding thermal performance

<High tack surface reduces contact resistance

<RoHS compliant


Applications

<Telecommunication hardware

<Handheld portable electronics

<Heat pipe thermal solutions

<Memory Modules

<Monitoring the Power Box

<AD-DC Power Adapters

<Rainproof LED Power

<Waterproof LED Power

Typical Properties of TIF 5120-40-11US
Product Name
TIF5120-40-11US Series
Colour
Grey
Construction & Compostion
Ceramic filled silicone rubber
Specific Gravity
3.1 g/cc
Dielectric Constant@1MHz
4.0 MHz
Hardness
20 Shore 00
Outgassing (TML)
0.35%
Continuos Use Temp
-40 to 160℃
Dielectric Breakdown Voltage
>5500 VAC
Thermal conductivity
4.0W/mK
Thickness
3.0mmT

Packaging Details & Lead time

The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated

Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

UL

4.0W/MK 20 Shore 00 3.0mmT Ultra Soft Thermal Gap Pad For Telecom Hardware

Standard Thicknesses:

0.020" (0.51mm) 0.030" (0.76mm)

0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)

0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)

0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)

0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)

0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)

0.190" (4.83mm) 0.200" (5.08mm)

Consult the factory to alternate thickness.

Standard Sheets Sizes:

8" x 16"(203mm x 406mm)

TIF™ series Individual die cut shapes can be supplied.

Advantage

Ziitek has independent R&D team. This team is experience, rigorous and pragmatic.

They undertake the core research and development tasks of Ziitek thermal conductive materials. With well-equipped testing equipment, we Ziitek can also do some tests with customers' samples, so we can find a more suitable Ziitek materials for every customer.
