Blue Silicone Sheets For GPS Navigation And Other Portable Devices

Name: Blue Silicone Sheets For GPS Navigation And Other Portable Devices
Brand: Ziitek
Price: 0.1 USD

China Blue Silicone Sheets For GPS Navigation And Other Portable Devices wholesale

Brand Name : Ziitek

Model Number : TIF540S thermal pad

Certification : UL

Place of Origin : China

MOQ : 1000 pcs

Price : 0.1-10 USD/PCS

Payment Terms : T/T

Supply Ability : 100000pcs/month

Delivery Time : 3-8 work days

Packaging Details : 25*24*13cm canton

hardness : 45shore00

KEYWORD : blue silicone rubber pads

color : blue

part number : TIF540S

material : silicone

Thickness : 1.0mmT

Contact Now

China company supplied blue silicone sheets for GPS navigation and other portable device

Company Profile

Ziitek Electronic Material and Technology Ltd. is a R&D and production company, we have many production lines and processing technology of thermal conductive materials, owns advanced production equipment and optimized process, can provide various thermal solutions for different applications.

TIF500S Datasheet-REV02.pdf

The TIF540S is an extremely soft gap filling material rated at a thermal conductivity of 3.2 W/m-K. It is specially formulated for high performance applications requiring low assembly stress. The material offers exceptional thermal performance at low pressures due to the unique filler package and ultra low modulus resin formulation. TIF540S is highly conformal to rough or irregular surfaces, allowing excellent wet-out at the interface. Protective liners are supplied on both sides allowing for ease of use..

Features

<Good thermal conductive:3.2 W/mK

<Thickness:1.0mmT

<High tack surface reduces contact resistance

<RoHS compliant

<UL recognized

<Fiberglass reinforced for puncture, shear and tear resistance

Applications

<GPS navigation and other portable devices

<CD-Rom, DVD-Rom cooling

<LED Power Supply

<LED Controller

<LED Ceilinglamp

<Monitoring the Power Box

<AD-DC Power Adapters

Typical Properties of TIF 540S
Product Name	TIF540S Series
Colour	Blue
Construction & Compostion	Ceramic filled silicone rubber
Specific Gravity	3.0g/cc
Thickness	1.0mmT
Hardness	45 Shore 00
Tensile Strength	40 psi
Continuos Use Temp	-40to 160℃
Dielectric Breakdown Voltage	>5500 VAC
Thermal conductivity	3.2 W/mK
Thickness	0.50mm to 5.0mmT

Packaging Details & Lead time

The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated

Blue Silicone Sheets For GPS Navigation And Other Portable Devices

Ziitek Culture

Quality :

Do it right the first time, total quality control

Effectiveness:

Work precisely and thoroughly for effectiveness

Service:

Quick response, On time delivery and Excellent service

Team work:

Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.

Product Tags:

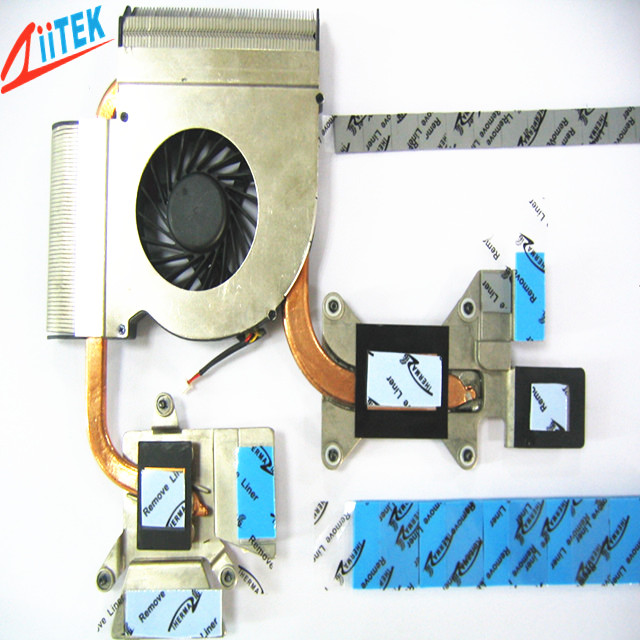

Blue Silicone Sheets For GPS Navigation And Other Portable Devices Images
