UL recognized and RoHS compliant thermal conductive gap pad 3.2W/M-K For power supply
Company Profile
With a wide range, good quality, reasonable prices and stylish designs, Ziitek thermal conductive interface materials are extensively used in Mainboards, VGA cards, Notebooks, DDR&DDR2 products, CD-ROM ,LCD TV, PDP products, Server Power products, Down lamps, Spotlights, Street lamps, Daylight lamps, LED Server Power products and others.
TIF500S Datasheet-REV02.pdf
The TIF5200S is not only designed to take advantage of the gap heat transfer, to fill gaps, complete the heat transfer between heating and cooling parts, but also played insulation, damping, sealing and so on, to meet the equipment miniaturization and ultra-thin design Requirements, which is a highly technology and use, and the thickness of the wide range of applications, is also an excellent thermal conductivity filler material.
Features
<Good thermal conductive:3.2 W/mK
<Thickness:5.0mmT
<Hardness:45 Shore 00
<Outstanding thermal performance
<High tack surface reduces contact resistance
<Soft and compressible for low stress applications
Applications
<power supply
<Heat pipe thermal solutions
<Memory Modules
<CD-Rom, DVD-Rom cooling
<LED Power Supply
<LED Controller
<LED Ceilinglamp
Typical Properties of TIF 5200S |
| Product Name | TIF5200S Series |
| Colour | Blue |
| Construction & Compostion | Ceramic filled silicone rubber |
| Specific Gravity | 3.0g/cc |
| Thickness | 5.0mmT |
| Hardness | 45 Shore 00 |
| Tensile Strength | 40 psi |
| Continuos Use Temp | -40to 160℃ |
| Dielectric Breakdown Voltage | >5500 VAC |
| Thermal conductivity | 3.2 W/mK |
Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.
Reinforcement: TIF™ series sheets type can add with fiberglass reinforced.
Standard Sheets Sizes:
8" x 16"(203mm x 406mm)
TIF™ series Individual die cut shapes can be supplied.
Why Choose us ?
1.Our value message is'' Do it right the First time, total quality control''.
2.Our core competencies is thermal conductive interface materials
3.Competitive advantage products.
4.Condidentiality agreement Bussiness Secrect Contract
5.Free sample offer
6.Quality assurance contract
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China
Q: How do I request customized samples?
A: To request samples, you can leave us message on website, or just contact us by send email or call us.
Product Tags:
|
|

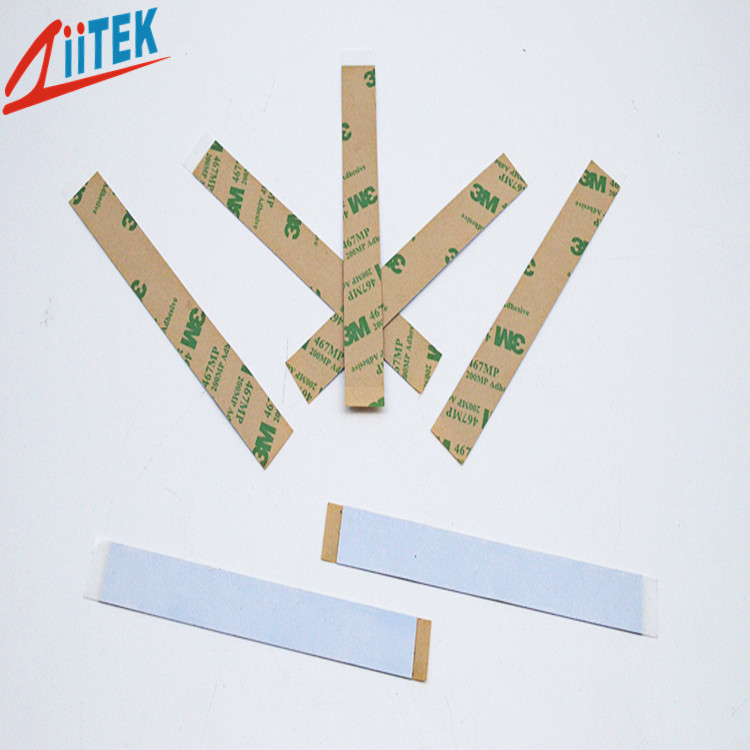

Blue RoHS Compliant Thermal Conductive Gap Pad 3.2W/M-K For Power Supply Images
|
