4.5mmT Electrically isolating professional thermal conductive gap filler 12±5 shore00 for Telecommunication hardware
Company Profile
Ziitek Electronic Material and Technology Ltd. is a R&D and production company, we have many production lines and processing technology of thermal conductive materials, owns advanced production equipment and optimized process, can provide various thermal solutions for different applications.
TIF100-05ES-Datasheet.pdf

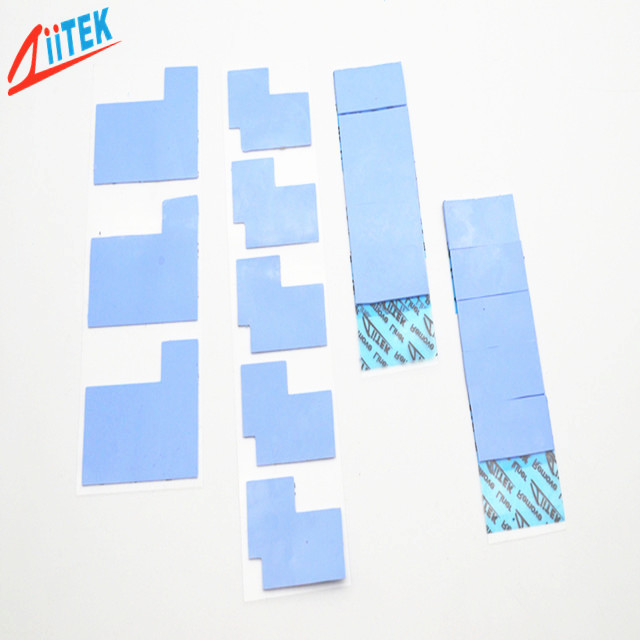

TIF1180-05ES is a silicone based, thermally conductive gap pad. Its unreinforced construction allows additional compliancy. This product has low hardness is conformable and is electrically isolating. The low modulus characteristic of the product offers optimal thermal performance with the ease of handling
Features
<Good thermal conductive:1.5 W/mK
<Thickness:4.5mmT
<Hardness:12±5 Shore 00
<UL recognized
<Moldability for complex parts
<Naturally tacky needing no further adhesive coating
Applications
<Telecommunication hardware
<Handheld portable electronics
<Semiconductor automated test equipment (ATE)
<Set top boxes
<Audio and video components
<IT infrastructure
<GPS navigation and other portable devices
Typical Properties of TIF1180-05ES |
| Product Name | TIF1180-05ES Series |
| Colour | Blue |
| Construction & Compostion | Ceramic filled silicone rubber |
| Density | 2.0 g/cm3 |
| Thickness | 4.5mmT |
| Hardness | 12±5 Shore 00 |
| Tensile Strength | 40 psi |
| Continuos Use Temp | -40to 160℃ |
| Dielectric Breakdown Voltage | >5500 VAC |
| Thermal conductivity | 1.5 W/mK |
Ziitek Culture
Quality :
Do it right the first time, total quality control
Effectiveness:
Work precisely and thoroughly for effectiveness
Service:
Quick response, On time delivery and Excellent service
Team work:
Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
