Ultra Soft Heat Sink Pad for Audio & Video Components, 4.0mmT, 18 Shore 00, TIF1160-18-01US
Company Profile
Ziitek thermal conductive interface materials are widely recognized and trusted by users and can meet continuously developing economic and social needs.
TIF100-18-01US-Specification-sheet.pdf

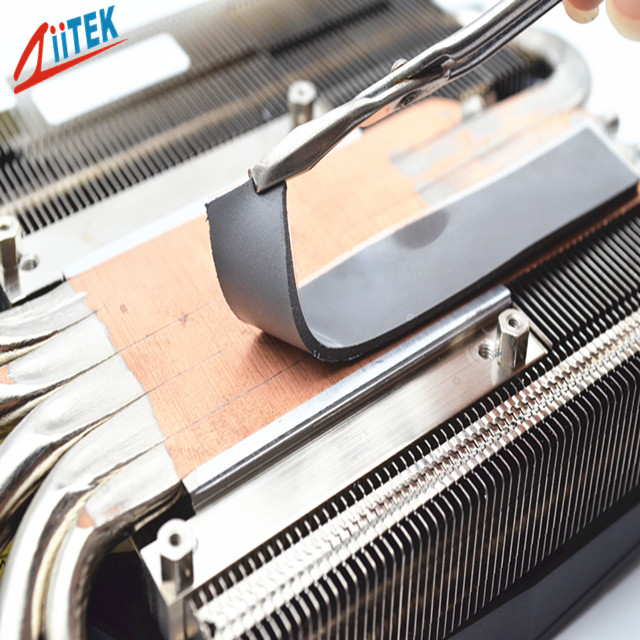

TIF1180-18-01US use a special process, with silicone as the base material, adding thermal conductive powder and flame retardant together to make the mixture to become thermal interface material. This is effective in lower the thermal resistance between the heat source and the heat sink.
Features
<Good thermal conductive:1.8W/mK
<Thickness:4.5mmT
<Hardness:18 Shore 00
<Colour: black
<RoHS compliant
<Fiberglass reinforced for puncture, shear and tear resistance
<High durability
Applications
<Automotive electronics
<Set top boxes
<Audio and video components
<Automotive engine control units
<Telecommunication hardware
<Handheld portable electronics
<Semiconductor automated test equipment (ATE)
<CPU
Typical Properties of TIF1180-18-01US |
| Product Name | TIF1180-18-01US Series |
| Colour | black |
| Construction & Compostion | Ceramic filled silicone elastomer |
| Specific gravity | 2.5 g/cc |
| Thickness | 4.5mmT |
| Hardness | 18 Shore 00 |
| Dielectric constant@1MHz | 4.5 MHz |
| Continuos Use Temp | -40to 160℃ |
| Dielectric Breakdown Voltage | >5500 VAC |
| Thermal conductivity | 1.8 W/mK |
| Volume Resistiviyt | 1.0*1012 Ohm-cm |
Standard Thicknesses:
0.020" (0.51mm) 0.030" (0.76mm)
0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)
0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)
0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)
0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)
0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)
0.190" (4.83mm) 0.200" (5.08mm)
Consult the factory to alternate thickness.
Our services
Online-service : 12 hours , Inquiry reply within fastest.
Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).
Well-trained & experienced staff are to answer all your inquiries in English of course.
Standard Export Carton Or Marked With Customer's Information Or Customized.
Provide free samples
After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.
we will help you to deal with it and give you satisfactory solution.
