5.0W/mK Gray UL Recognized Conductive Pads for Heat Pipe Thermal Solutions

Name: 50WmK Gray UL Recognized Conductive Pads for Heat Pipe Thermal Solutions
Brand: Ziitek
Price: 0.1 USD

China 5.0W/mK Gray UL Recognized Conductive Pads for Heat Pipe Thermal Solutions wholesale

Brand Name : Ziitek

Model Number : TIF1120N-50-10F thermal pad

Certification : UL

Place of Origin : China

MOQ : 1000 pcs

Price : 0.1-10 USD/PCS

Payment Terms : T/T

Supply Ability : 100000pcs/month

Delivery Time : 3-8 work days

Packaging Details : 25*24*13cm canton

Flame Rating : 94-V0

Thickness : 3.0mmT

Name : 5.0W/mK Gray UL Recognized Conductive Pads for Heat Pipe Thermal Solutions

keyword : Thermal Gap Pad

Hardness : 55±5 Shore 00

Application : mainboard/mother board

Contact Now

5.0W/mK Gray UL Recognized Conductive Pads for Heat Pipe Thermal Solutions

Company Profile

Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market.

Our vast experience allows us to assist our customers best in thermal engineering field.

We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect!

TIF100N-50-10F-Specification-sheet.pdf

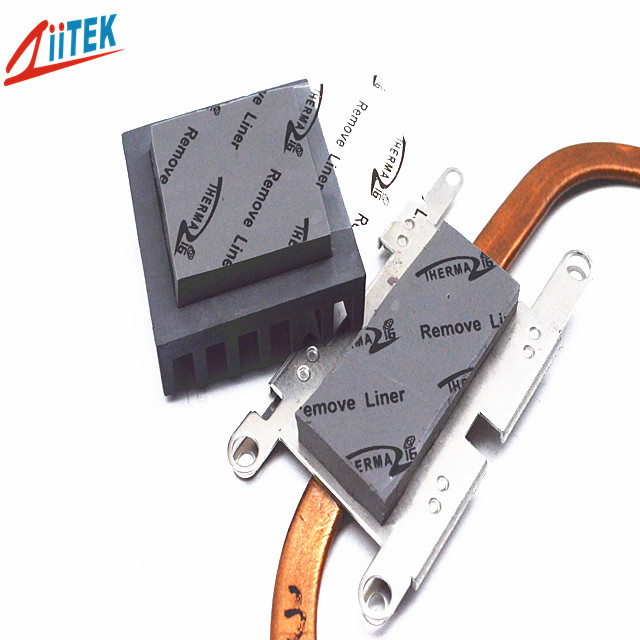

Ziitek TIF1120N-50-10F is not only designed to take advantage of the gap heat transfer, to fill gaps, complete the heat transfer between heating and cooling parts, but also played insulation, damping, sealing and so on, to meet the equipment miniaturization and ultra-thin design Requirements, which is a highly technology and use, and the thickness of the wide range of applications, is also an excellent thermal conductivity filler material.

<Good thermal conductive: 5.0 W/mK

<Thickness: 3.0mmT

<Hardness:55±5 Shore 00

<Colour: gray

<RoHS compliant
<UL recognized
<Easy release construction

Applications

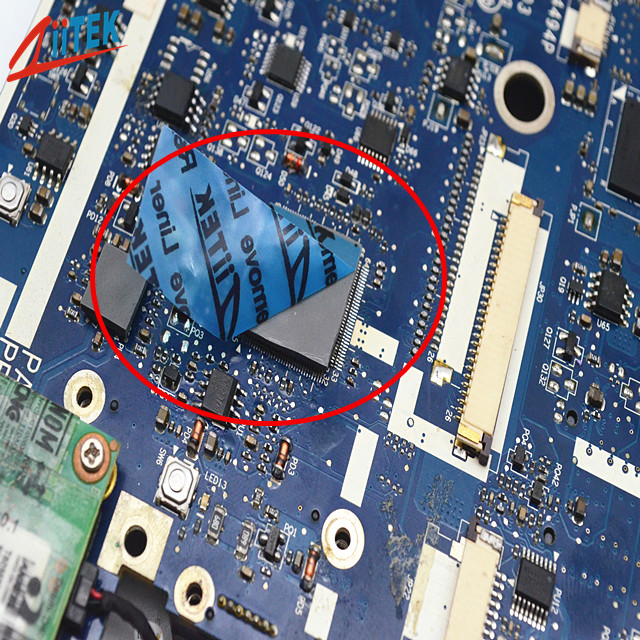

<mainboard/mother board

<notebook

<power supply

<Heat pipe thermal solutions

<Memory Modules

<Mass storage devices

Typical Properties of TIF1120N-50-10F
Product Name	TIF1120N-50-10F Series
Colour	Gray
Construction & Compostion	Ceramic filled silicone elastomer
Specific gravity	2.1 g/cm^3
Thickness	3.0mmT
Hardness	55±5 Shore 00
Dielectric constant@1MHz	4.7 MHz
Continuos Use Temp	-40 to 160℃
Dielectric Breakdown Voltage	>5500 VAC
Thermal conductivity	5.0W/mK
Flame Rating	94-V0

Standard Sheets Sizes:

8" x 16"(203mm x 406mm)

TIF™ series Individual die cut shapes can be supplied.

5.0W/mK Gray UL Recognized Conductive Pads for Heat Pipe Thermal Solutions

Why Choose us ?

1.Our value message is'' Do it right the First time, total quality control''.

2.Our core competencies is thermal conductive interface materials

3.Competitive advantage products.

4.Condidentiality agreement Bussiness Secrect Contract

5.Free sample offer

6.Quality assurance contract

5.0W/mK Gray UL Recognized Conductive Pads for Heat Pipe Thermal Solutions
