China Thermal Pad Wholesaler Low Cost 1.5mm Thermal Conductive Pad For Routers
Company Profile
Ziitek Electronic Material and Technology Ltd. is a R&D and production company, we have many production lines and processing technology of thermal conductive materials, owns advanced production equipment and optimized process, can provide various thermal solutions for different applications.
TIF700L-HM-Series-Datasheet-REV02.pdf
Ziitek TIF760L-HM is not only designed to take advantage of the gap heat transfer, to fill gaps, complete the heat transfer between heating and cooling parts, but also played insulation, damping, sealing and so on, to meet the equipment miniaturization and ultra-thin design Requirements, which is a highly technology and use, and the thickness of the wide range of applications, is also an excellent thermal conductivity filler material.
< Good thermal conductive: 6.0 W/mK
< Thickness: 1.5mmT
< Hardness: 30 Shore 00
< Colour: Grey
< UL recognized
< Easy release construction
< Electrically isolating
Applications
< Automotive electronics
< Set top boxes
< Audio and video components
< IT infrastructure
< GPS navigation and other portable devices
< CD-Rom, DVD-Rom cooling
| Typical Properties of TIF760L-HM |
| Product Name | TIF760L-HM Series |
| Colour | Grey |
| Construction & Compostion | Ceramic filled silicone elastomer |
| Specific gravity | 3.3 g/cc |
| Thickness | 1.5mmT |
| Hardness | 30 Shore 00 |
| Dielectric constant@1MHz | 4.5 MHz |
| Continuos Use Temp | -40 to 160℃ |
| Dielectric Breakdown Voltage | >5500 VAC |
| Thermal conductivity | 6.0W/mK |
| Flame Rating | 94-V0 |
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Ziitek Culture
Quality :
Do it right the first time, total quality control
Effectiveness:
Work precisely and thoroughly for effectiveness
Service:
Quick response, On time delivery and Excellent service
Team work:
Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.
FAQ
Q: How to find a right thermal conductivity for my applications
A: It depends on the watts of power source , ability of heat dissipation. Please tell us your detailed applications and the power, so we can recommend most suitable thermal conductive materials.
Q: Do you accept custom orders ?
A:Yes , welcome to custom orders. Our custom elements including dimension , shape , color and coated on side or two sides adhesive or coated fiberglass. If you want to place a custom order , pls kindly offer a drawing or leave your custom order information .
Product Tags:
|
|

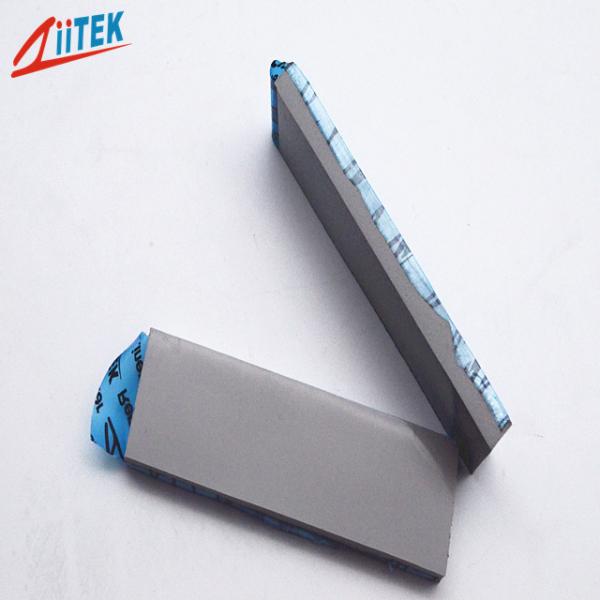

Electrically Insulating 1.5mm Thermal Conductive Pad For Routers Images
|
