Ziitek Electronic Material and Technology Ltd. provides product solutions to equipment product which generates too much heat affecting its high performance when using. Plus thermal products can control and manage heat to keep it cool to some extent.
TIF700Z-Series-Datasheet(E)-REV01.pdf

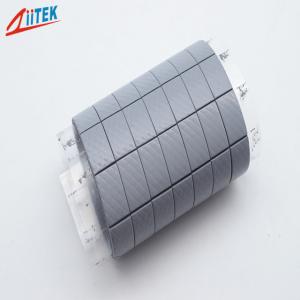

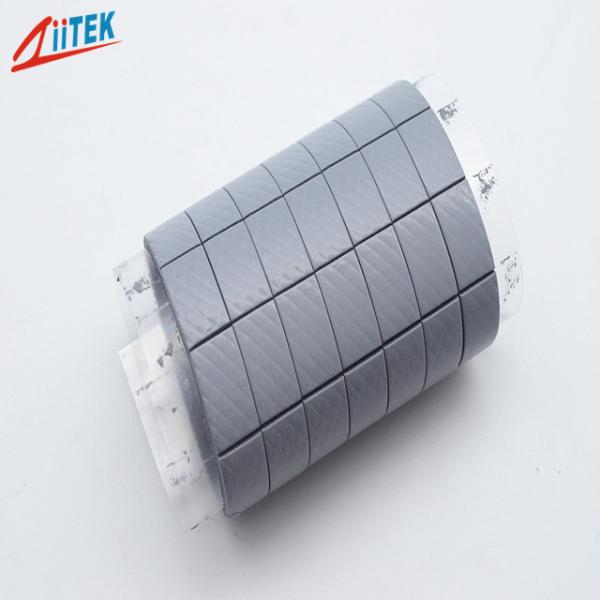

Ziitek TIF7200Z is recommended for applications that require a minimum amount of pressure on components. The viscoelastic nature of the material also gives excellent low-stress vibration dampening and shock absorbing characteristics. TIF7200Z is an electrically isolating material, which allows its use in applications requiring isolation between heat sinks and high-voltage, bare-leaded devices.
| Typical Properties of TIFTIF7200Z |
| Product Name | TIF7200Z Series |
| Colour | Grey |
| Construction & Compostion | Ceramic filled silicone elastomer |
| Specific gravity | 3.45 g/cc |
| Thickness | 5.0mmT |
| Hardness | 55 Shore 00 |
| Dielectric constant@1MHz | 4.5 MHz |
| Continuos Use Temp | -40 to 200℃ |
| Dielectric Breakdown Voltage | >5500 VAC |
| Thermal conductivity | 7.0W/mK |
| Flame Rating | 94-V0 |
Standard Thicknesses:
0.020" (0.51mm) 0.030" (0.76mm)
0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)
0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)
0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)
0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)
0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)
0.190" (4.83mm) 0.200" (5.08mm)
Consult the factory to alternate thickness.
