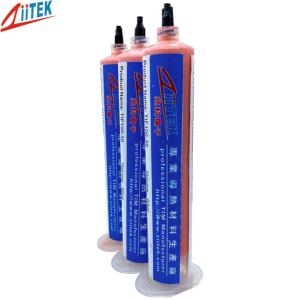

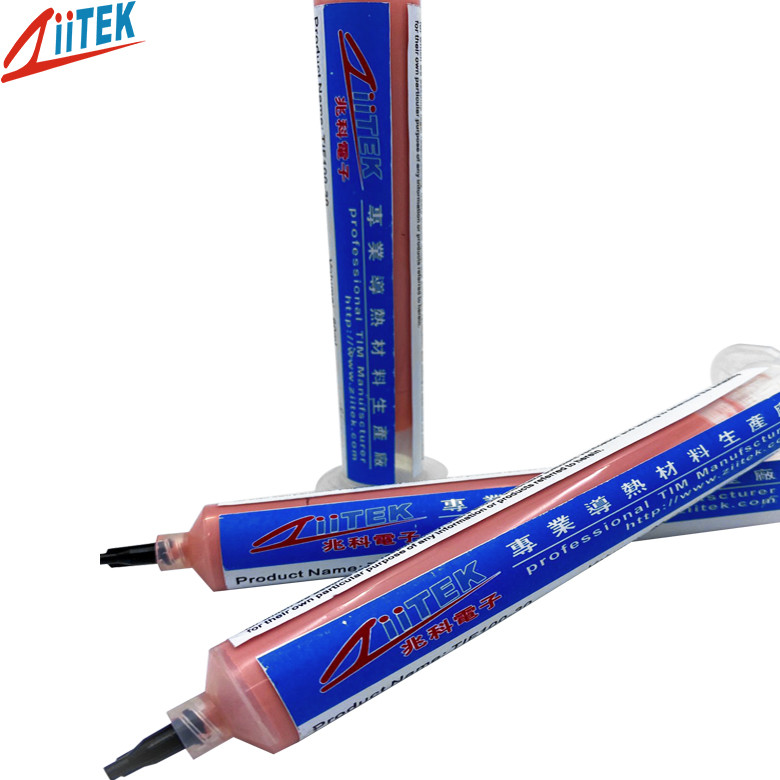

Silicone Thermal Conductive Putty Thermal Gap Filler Gel Manufacturer

Name: Silicone Thermal Conductive Putty Thermal Gap Filler Gel Manufacturer
Brand: Ziitek
Price: 0.1 USD

China Silicone Thermal Conductive Putty Thermal Gap Filler Gel Manufacturer wholesale

Brand Name : Ziitek

Model Number : TIF070-11

Certification : UL

Place of Origin : China

MOQ : 1000tube

Price : 0.1-100USD/KG

Payment Terms : T/T

Supply Ability : 10000KG/MONTH

Delivery Time : 3-8 WORK DAYS

Packaging Details : 300cc/tube

Products Name : Manufacturer Hot Sale Silicone thermal conductive Putty Thermal Gap Filler Thermal Gel

Application : Heat-sink & frame

Color : Gray

keywords : Silicone thermal gel

flame rating : UL 94 V-0

Certifications : RoHS

Thermal conductivity : 7.0 W/m-K

SPecific Gravity : 3.0g/cc

Contact Now

Manufacturer Hot Sale Silicone thermal conductive Putty Thermal Gap Filler Thermal Gel

TIF^TM070-11 is a soft silicone putty thermal gap filler,which blend with exclusiveformula,that offer superior thermal performance, and compressibility.Due to TIF^TM070-11 is made by high vicosity silicon oil ,that can prevent thermalformula seprate from it.Besides ,compared with traditionally thermal pad, it cancontrol bonded shifiting issue much better.

TIF^TM070-11 operation mold is simliar as grease ,such as silkprint and screen printor automatic injected facility.TIF^TM070-11 can be applied on chip micro processor,PPGAs,Micro BGApackage,BGA package,DSP chip,LED lighting and other high power electriccomponent.

TIF070-11-silicone-putty-thermal-gap-filler.pdf

Silicone Thermal Conductive Putty Thermal Gap Filler Gel Manufacturer

Feature
>Thermal conductivity
>Soft, very low compression
>Low thermal inpedance
>Operate automaticly
>Proven long-term reliability

Application
>Heat-sink & frame
>LED backlight module,LED lighting
>High speed hardware driver
>Micro heat pipe
>Vihicel enginee controler
>Telecom industry
>Semiconductor 'automatic laboratory equipment.

TIF^TM070-11 Property
Color	Gray	Visual
Construction & Composition	Ceramic filled silicon material	**********
Viscosity	21280000 cps	GB/T 10247
Specific Gravity	3.50 g/cc	ASTM D297
Thermal conductivity	7.0 W/mK	ISO 22007-2
Thermal diffusivity	2.80 mm²/s	ISO 22007-2
Specific heat capacity	2.70 MJ/m³K	ISO 22007-2
Continuous Use Temperature	-40 ~150°C	******
Dielectric breakdown strength	200 V/mil	ASTM D149
Flame Rating	94V0	E331100

Packing details

30 cc/pc, 98 pc/box; 300 cc/pc 6 pc/box
We offer the custom packaged in syringes for automated despensing applications.
Please contact us for confirming.

Company Profile

Ziitek Electronic Material and Technology Ltd. is a R&D and production company, we have many production lines and processing technology of thermal conductive materials, owns advanced production equipment and optimized process, can provide various thermal solutions for different applications.

Silicone Thermal Conductive Putty Thermal Gap Filler Gel Manufacturer

FAQ:

Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q: How long is your delivery time?
A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra cost?
A: Yes, we could offer samples free of charge.
