Self-Adhesive Thermal Conductive Silicone Thermal Insulation Material Insulation Sheet For Communication Equipment

Name: SelfAdhesive Thermal Conductive Silicone Thermal Insulation Material Insulation Sheet For Communication Equipment
Brand: Ziitek
Price: 0.1 USD

China Self-Adhesive Thermal Conductive Silicone Thermal Insulation Material Insulation Sheet For Communication Equipment wholesale

Brand Name : Ziitek

Model Number : TIS805-16-03

Certification : UL & RoHS

Place of Origin : China

MOQ : 1000pcs

Price : 0.1-10 USD/pcs

Delivery Time : 3-6 work days

Packaging Details : 24*13*12cm cartons

Product name : Self-Adhesive Thermal Conductive Silicone Thermal Insulation Material Insulation Sheet For Communication Equipment

Materials : Ceramic filled silicone elastomer / Fiberglass

Feature : Low thermal resistant with high voltage isolation

Thermal conductive : 1.6W/mK

continous use temp : -60 to 180℃

compliance : UL & RoHS

Color : Yellow

Application : Communication Equipment

keyword : Silicone Insulation Sheet

Thickness range(inch/mm) : 0.005/0.127

Contact Now

Self-Adhesive Thermal Conductive Silicone Thermal Insulation Material Insulation Sheet For Communication Equipment

Ziitek Electronic Material and Technology Ltd. provides product solutions to equipment product which generates too much heat affecting its high performance when using. Plus thermal products can control and manage heat to keep it cool to some extent.

The TIS^®809-16-02 Series of products are highly efficient insulating products and they also have thermal conductivity. It achieves the effect of both insulation and heat conduction by adding insulating silicone base material to the heat-conducting material.

Features:
> High thermal conductive and High dielectric strength
> Low thermal resistance with high voltage isolation
> Resistant to tears and punctures

Applications:
> Car Battery & Power Supply

> Power semiconductors
> Audio and Video components

> Motor controllers

Typical Properties of TIS^®805-16-03 Series
Property	Value	Test Method
Color	Yellow	Visual
Construction &Compostion	Ceramic filled silicone elastomer /fiberglass	******
Thickness range	0.005inch (0.127mm)	ASTM D374
Tensile Strength(MPa)	40	ASTM D412
Density	2.4 g/cc	ASTM D297
Continuos Use Temp	-60 to 180℃	******
Breakdown Voltage(V/mm)	3000	ASTM D149
Dielectric Constant @ 1MHz	6.0	ASTM D150
Volume Resistivity	1.0X10¹² Ohm-meter	ASTM D257
Fire rating	94 V0	UL94(E331100)
Thermal conductivity	1.6W/m-K	ASTM D5470
Thermal impedance(℃-in²/W)@30psi	0.5	ASTM D5470

Standard Thicknesses

0.005inch (0.127mm)

Standard Sizes
12" x 160"(304mm * 48.76M)

The TlS series can be die-cut into different shapes and provided. lf you need different thicknesses, please contact our company.

Self-Adhesive Thermal Conductive Silicone Thermal Insulation Material Insulation Sheet For Communication Equipment

Packaging Details & Lead time

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated

Our services

Online-service : 12 hours , Inquiry reply within fastest.

Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).

Well-trained & experienced staff are to answer all your inquiries in English of course.

Standard Export Carton Or Marked With Customer's Information Or Customized.

Provide free samples

After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.

we will help you to deal with it and give you satisfactory solution.

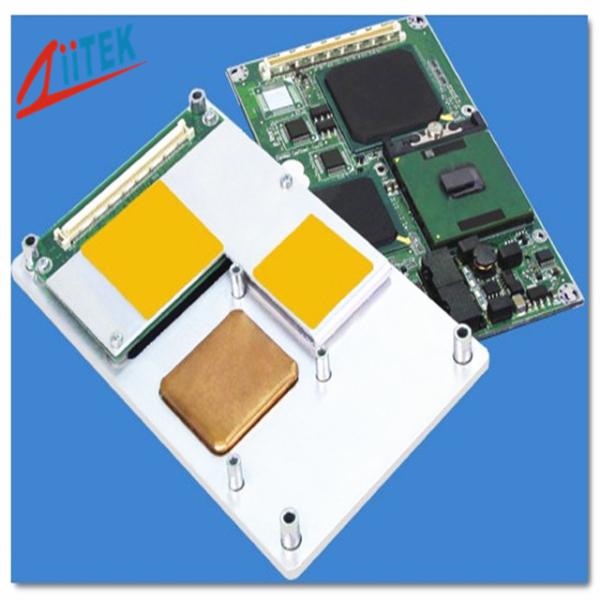

Self-Adhesive Thermal Conductive Silicone Thermal Insulation Material Insulation Sheet For Communication Equipment Images
