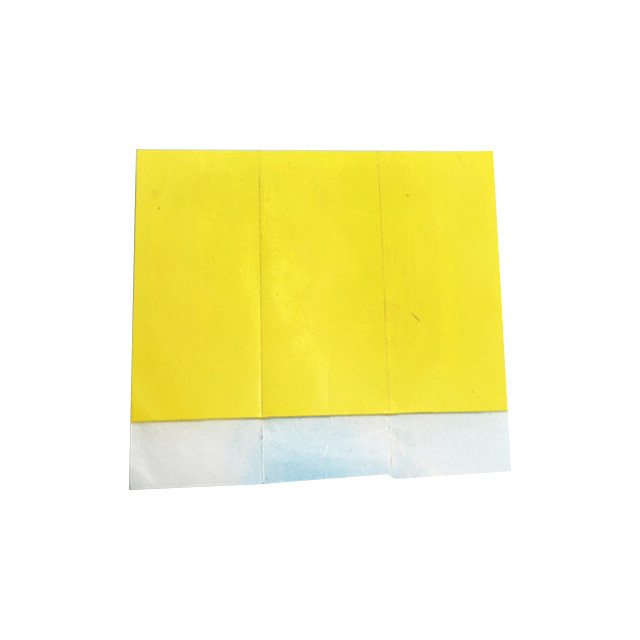

High Temperatures Low Melting 1.5W PCM Phase Change Materials For Battery

Name: High Temperatures Low Melting 15W PCM Phase Change Materials For Battery
Brand: Ziitek
Price: 0.1 USD

China High Temperatures Low Melting 1.5W PCM Phase Change Materials For Battery wholesale

Brand Name : Ziitek

Model Number : TIC800K-A1

Certification : RoHS

Place of Origin : China

MOQ : 1000pcs

Price : 0.1-10 USD/PCS

Payment Terms : T/T

Supply Ability : 1000000 pcs/month

Delivery Time : 3-6 work days

Packaging Details : 24*13*12cm cartons

Name : High Temperatures Low Melting 1.5W PCM Phase Change Materials For Battery

Applicatoin : Laptop CPU GPU Battery

Color : Yellow

Keyword : Phase Change Materials

Feature : Low melting & Low thermal resistance

Thermal conductivity : 1.5W/mK

Density : 2.0g/cm³

Phase Change Softening Temperature : 50~60℃

Construction : Non-Silicone Thermoplastic / Polyimide film

Contact Now

High Temperatures Low Melting 1.5W PCM Phase Change Materials For Battery

Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market. Our vast experience allows us to assist our customers best in thermal engineering field.We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect!

TIC^®800K-A1 Series this series is a high-performance and high-cost-utilization thermal interface material. lts unique grain directionality and plate structure allow it to be precisely consistent with the surface, and it’s thermal conversion effect is amplified. At a temperature 50C higher than its transition temperature,the TlC series begins a softening phase transition, which can fill the tiny irregular contact surfaces of the device,forming an interface with a small contact thermal resistance and achieving a good heat dissipation effect.

Features

> Low thermal resistance
> Elf-adhesive without the need for additional surface adhesives
> Low-pressure application environment

Applications

> Power conversion equipment
> Power supply and vehicle storage battery

> Large communication switch hardware

> LED TV/ Lighting
> Laptop computer

Typical Properties of TIC^®800K-A1 Series
Product Name	TIC^®805K-A1	TIC^®806K-A1	Test Method
Construction	Non-Silicone Thermoplastic / Polyimide film		*****
Color	Yellow		Visual
Thickness range(inch/mm)	0.005 inch/0.125mm	0.006 inch/0.150mm	ASTM D374
Density	2.0g/cc		ASTM D792
Recommended Operating Temperature	-40℃～150℃		*****
Breakdown Voltage (V/mm)	5000		ASTM D149
Dielectric Constant @1MHz	4.5		ASTM D150
Volume Resistivity (Ohm-cm)	1.0*10¹²		ASTM D257
Phase Change Softening Temperature	50℃~60℃		*****
Thermal Conductivity	1.5 W/mK		ASTM D5470
Thermal Impedance (℃-in²/W)	0.2	0.21	ASTM D5470

Standard Thicknesses:
0.005 inch (0.125mm) / 0.006inch (0.150mm)

Standard Sizes:
10" x 100"(254mm x 30.48m)

The TlC series can be die-cut into different shapes for supply. If you need different thicknesses or would like to know more product information about thermal conductive materials, please contact our company.

High Temperatures Low Melting 1.5W PCM Phase Change Materials For Battery

Packaging Details & Lead time

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated
